ZSM Shotgun Flashlight Mount

(flashlight sold separately, complete Elzetta Shotgun Illumination Kit available below)

Offset flashlight mount which fits most full size shotguns such as Remington 870/1100, Mossberg 500/590, Benelli M4 (except SuperNova), and Winchester 1200/1300/Defender
WILL NOT WORK WITH: Mossberg 590A1, Benelli M3, Benelli Super Nova, Mossberg 930 SPX. Also will not work with Mossberg Shockwave or Remington TAC-14 (neither firearm has the required 1.75” mounting space available).
Requires mounting to barrel AND magazine tube with 1.75 inches of free mounting space in front of action with no obstructions such as a heatshield
Attaches to either side of shotgun making it configurable for left or right-handed shooters
Fits most tactical flashlights bodies 0.97 to 1.05 inches in diameter (flashlight is NOT included)
Sizing adapters for smaller sized flashlights are sold separately and are not included.
Constructed of glass-filled polymer
Made in USA

Click here for ZSM-T Shotgun Flashlight Mount with Thumbscrew

SKU: ZSM Category: Mounts Tags: 500, 590, 870, benelli, mossberg, remington, shotgun, winchester

Description
Additional information

Description

NOTE: Please contact us prior to purchasing this item via support@elzetta.com if you live in a geographic region with firearm, assault weapon and/or component bans.

The Elzetta ZSM Shotgun Flashlight Mount

works with 12-gauge shotguns from Remington, Mossberg, Winchester, and Benelli (except SuperNova) with at least 1-3/4 inches of free space on the magazine tube and barrel. Gauge Adapters are included for use with shotguns chambered in 20-gauge. Weapon-grade flashlights from 0.97 to 1.05 inches in diameter (18 to 26 mm) may be used. This includes all Elzetta Modular Flashlights.

Sizing adapters for smaller sized flashlights are sold separately and are not included.

The ZSM may be installed on either the right or left side of the gun providing natural operation of flashlight Tailcap switches. The position of the ZSM also allows for illumination of the front sight in many applications. Made in USA.

See complete Elzetta Shotgun Illumination Kit below for a total lighting solution at a discounted price.

See ZSM-T for Shotgun Flashlight Mount with Thumb Screw

WARNING: Make sure firearm is not loaded. Remove shells and examine chamber. Use safe handling procedures at all times. Do not alter or adjust unless instructed to do so below. Upon completing the installation of this product, check operation of shotgun’s pump action and ensure no interference exits.

ZSM installation illustration 1. Instructions in Step 1 text block explain the image.

Step 1: Assemble Shotgun Mount (with Gauge adapters, if appropriate) using a 7/64″ hex wrench for bottom screws and 5/32″ for larger top screws. Tighten bottom screws to 10 in0lbs maximum and top to 20 in-lbs. maximum. DO NOT use a ft-lb wrench. Loctite 222 is recommended for bottom fasteners.

ZSM installation illustration 2. Instructions in Step 2 text block explain the image.

Step 2: Dis-assemble Outer Clamp and re-assemble Outer Clamp using 7/64″ hex wrench and screws and nuts. Tighten all screws to 10 in-lbs. maximum. DO NOT use a ft-lb wrench. Loctite 222 is recommended except for center clamp screw.

ZSM installation illustration 3. Image shows clipping locations for sizing adapter to accommodate flashlights of 0.87-inch to 0.97-inch diameters.

Step 3: (Sizing Adapters are sold separately)

For flashlight diameters from 0.70” to 0.86” (18 to 22mm), use sizing adapters as-is. For flashlight diameters from 0.87” to 0.97” (22 to 25mm), cut Adapters along red lines as shown above.

ZSM installation illustration 4. Image shows clipping locations to adapt ZSM to 20 gauge firearms.

Step 4: Determine Requirement for Gauge Adapters:

For 12 Gauge, Adapters are not needed.
For 20 Gauge, trim Adapter along red lines as shown above.
May fit some older model .410 Gauge firearms without trimming.

Step 5: Check operation of shotgun’s action and ensure that shells feed properly from the magazine.

Gauge Adapter Before Trimming

Gauge Adapter After Trimming

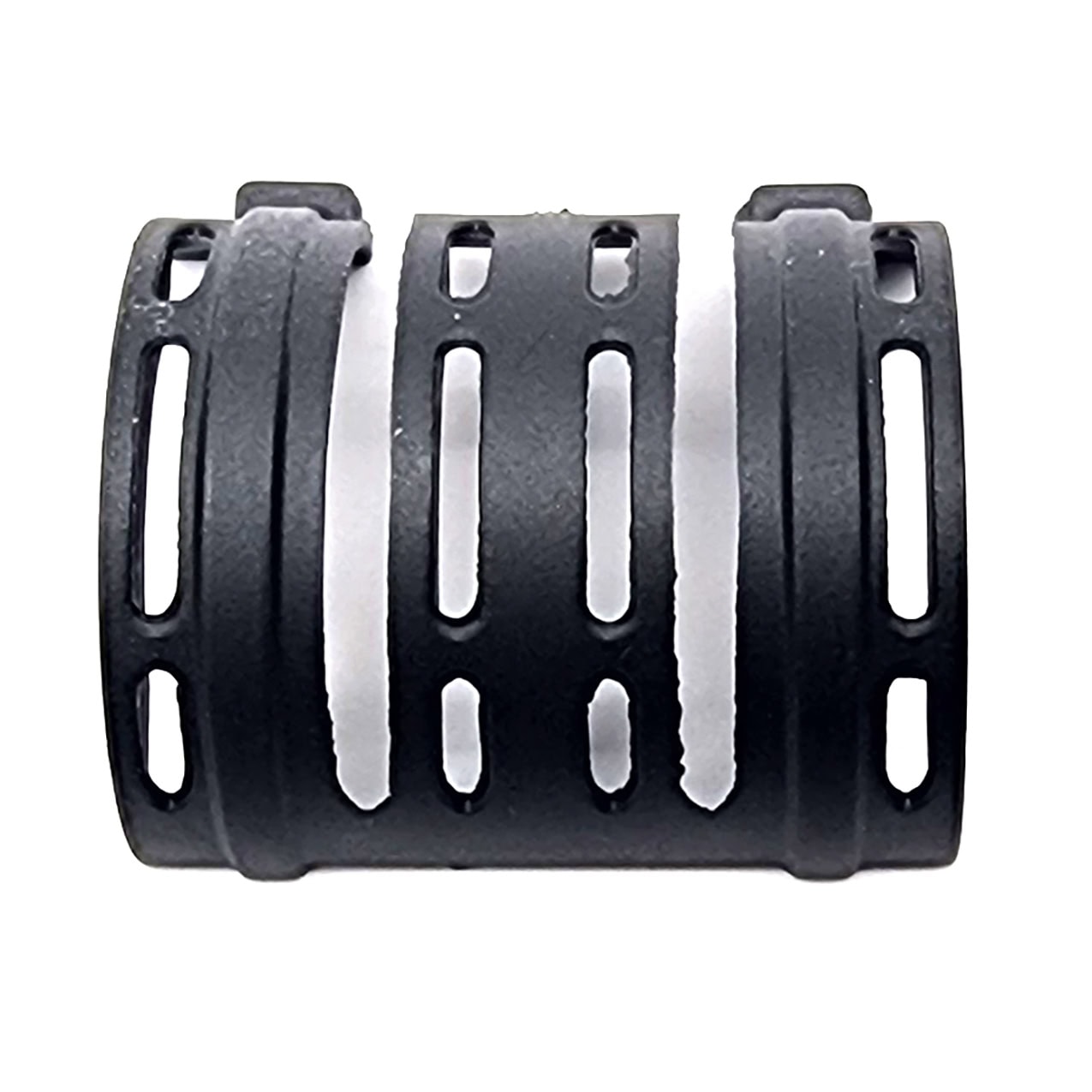

Sizing Adapter Before Trimming

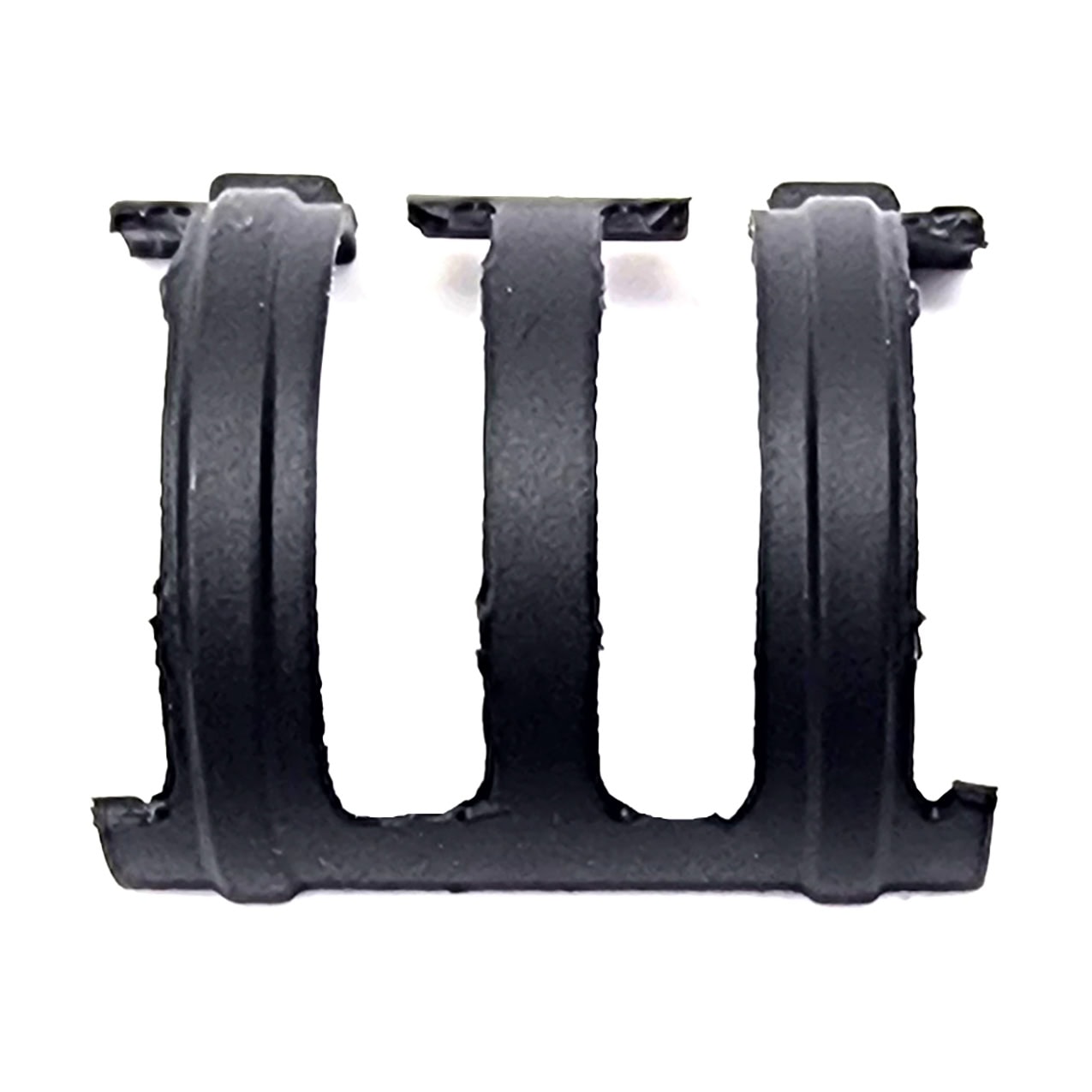

Sizing Adapter After Trimming

**For the sight impaired, please contact us at support@elzetta.com for assistance.**

Additional information

Weight	.311 lbs
Dimensions	8 × 5.125 × 1.75 in
